6-Lobe Pin Countersunk Machine Screw

///6-Lobe Pin Countersunk Machine Screw
  • 6LPCMS

6-Lobe Pin Countersunk Machine Screw

▶ Material:stainless steel & carbon steel
▶ Security Level:
▶ Size: M3-M10
▶ Standard: DIN, ANSI, JIS, BS
▶ Packing:Boxs or pallet or customer request

skype chat
Category: Tag:

▶ 6-Lobe Pin also known as: Star drive pin, Pin Torx,Torx-BO or resistorx

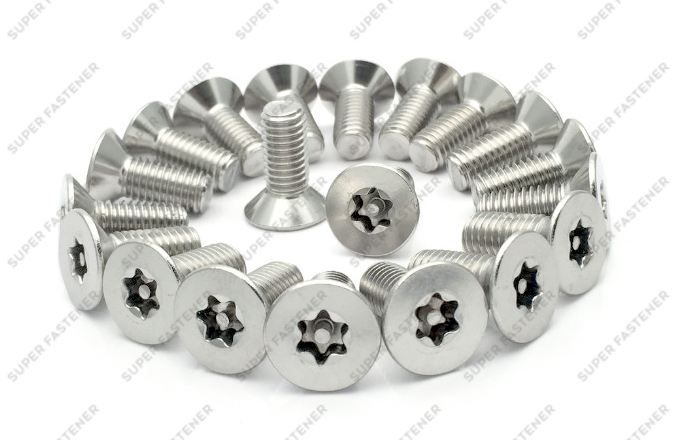

▶ 6-Lobe Pin screws with a central pin inside the six-lobe recess preventing removal with standard Torx tools
▶ Countersunk head for a flush finish in a countersunk hole (screw length includes head)
▶ Manufactured in A2 stainless steel or carbon steel
▶ Suitable for higher torque applications
▶ Matching security insert bits and L-Keys (Allen Keys) available

Size Driver Size Head Dia Head Height
M3 TX10 5.6mm 1.7mm
M4 TX20 7.8mm 2.3mm
M5 TX25 9.8mm 2.8mm
M6 TX30 11.6mm 3.3mm
M8 TX40 15.2mm 5.0mm
M10 TX45 19.4mm 6.7mm
